Image is only for illustration purposes, refer to description for more information

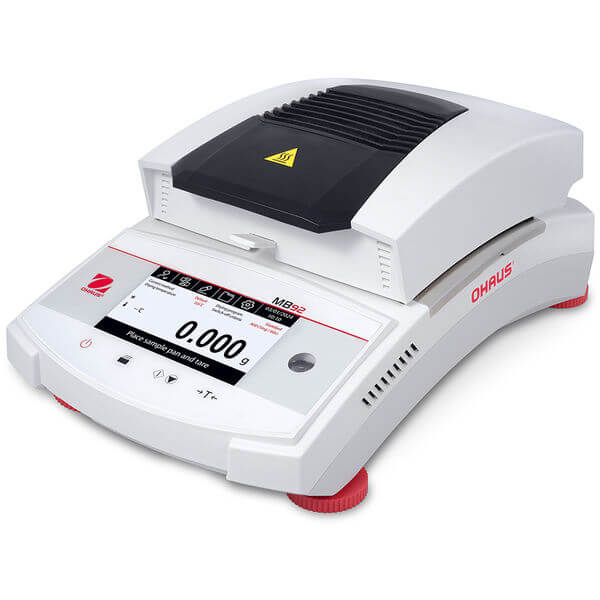

Moisture Analyzer MB92 - 90G X 0.001G

Name: Moisture Analyzer MB92 - 90G X 0.001G
SKU: MB92
Price: null AUD
Availability: InStock

Brand: Ohaus

SKU: MB92

POA.

Want pricing?

Qty:

i h

Product Files

Data Sheet_MB92_EN_AP

Overview
Quick Quote / Enquiry

Applications

Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing

Display

4.3" capacitive touch screen

Operation

Internal power supply with power cord (included)

Communication

RS232, USB device, USB host

Construction

Carbon fiber IR heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover

Design Features

Eight shut-off criteria (manual, timed, A10, A30, A60, A90, A160, free mg/s), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 200 results for all methods, 40-200℃ heating range, multiple operational languages

Specifications

Maximum Capacity	90 g
Readability Moisture Content	1 mg/0.01%
Pan Size	3.5 in (90 mm)
Heater Type	Carbon fiber
Communication	USB device; RS232; USB Host
Recommended Moisture Content MC%	0.5 % - 100 %
Adjustment	Temperature Adjustment - Mechanical (100℃, 160℃); Weight Adjustment - External (50g)
Dimensions	13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW)
Display	4.3” capacitive touch screen
Display Results	RG%; Temperature; Drying Curve; DC%; Time; Method Name; Statistics; MC%; Weight
Heating Profiles	Ramp; Standard; Step; Fast
ID Management	Sample Name; Sample ID; Batch ID
In-Use Cover	Included
Moisture Range	0.01 % – 100 %
Net Weight	9.5 lb (4.3 kg)
Operating Range (Temp.)	10 °C – 40 °C
Operation Instructions	Live Drying Curve; On-screen Instruction
Repeatability	0.08% (3g sample); 0.015% (10g sample)
Shut-Off Criteria	Timed; 5 Auto; Manual; Custom - User Set Weight Loss/Time
Status Light	Multi-color status light
Stored Results	200
Temperature Range	40 °C – 200 °C
Test Library	20
