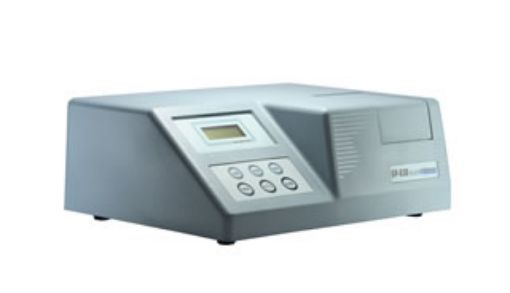

Metertech Visible Spectrophotometer main unit (Wavelength range:320-1100 nm)

The SP-800 series single beam visible spectrophotometers are an affordable, easy-to use, and reliable general purpose instrument designed for laboratories and educational needs. The SP-800 series visible beam spectrophotometer comes with 2 models. The SP-830+ standalone model measures the traditional absorbance, transmittance and concentration. And the PC enabled SP-880 with enhance measurement features such as spectrum scan, time scan, kinetic, and quantitative. Both models also come with a versatile sample compartment to hold cuvettes, and tubes, of all sizes. The SP-800 series visible spectrophotometers are a compact, low-cost instrument with all the essentials for teaching and routine laboratory use.

SKU: SP-870+

POA

Want pricing?

Qty:

i h

Product Files

Datasheet Metertech SP-800 series

Overview
Quick Quote / Enquiry

Model Number

SP-830+

Optical Design

Single Beam

Light Source

Halogen Lamp

Detector

Silicon photodiode

Bandwidth

5nm

Wavelength Range

330~1100nm

Wavelength Accuracy

+/-1nm

Wavelength Repeatability

+/-0.35nm

Scanning Speed

4500nm/min

Photometric Range

-0.300~3.500A

0.3~150 %T

0.02~34996 C

Measurement Mode

Absorbance

Transmittance (%T)

Concentration

Photometric Accuracy

1.0% or 0.003A(from 0.000 to 2.500A),whichever is greater

Stability

<0.003A/hr at 500nm after one hour warm-up

Stray Light

<0.1% at 340nm

Display

10 x2 large character LCD

Sample Holder

10 mm square cuvette

10~13 mm round tube

50 mm rectangulare cell

Interface

Parallel port

Dimension

400(W) x 300(D) x 145(H) mm

Weight

7.5Kg
