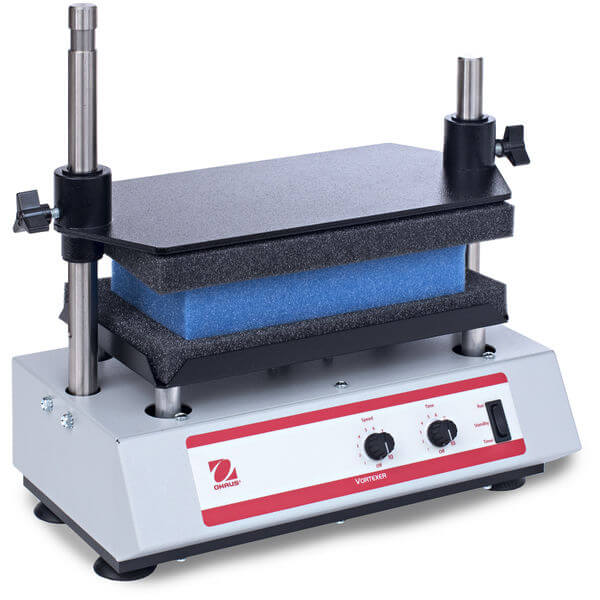

Vortex Mixer - VXMTALBAU

Brand: Ohaus
SKU: VXMTALBAU
POA

i h
Applications
Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vortexing tubes from 10 - 29 mm in diameter
Design Features
N/A

SPECIFICATIONS
Control Analog
Duty Rating Continuous
Orbit 0.1 in (3.6 mm)
Speed Range 1200 rpm – 2400 rpm
Capacity 4.5 kg
Timer Not Applicable
Dimensions 9.5 in x 16 in x 15.1 in (241 mm x 406 mm x 384 mm) (LxHxW)
Net Weight 41 lb (18.7 kg)
Power 230V, 1A, 50/60Hz
Power Consumption 100 W
Safety Certification CE;  TUV
Tray Size 7.25 in x 12.25 in (184 mm x 311 mm)
Working Environment 39 - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing)
*
*
*
*
*
