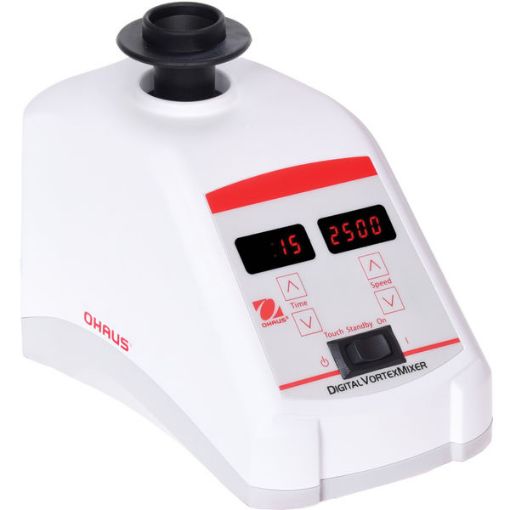

    Vortex Mixer MINI DIGITAL - VXMNDGAU

    Brand: Ohaus
    SKU: VXMNDGAU
    POA

    i h
    Applications
    Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
    Display
    Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
    Operation
    Detachable 3-wire cord and plug (included)
    Communication
    N/A
    Construction
    Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
    Design Features
    Microprocessor-control to maintain set speed for consistent mixing action (digital models), 230V models have a maximum speed of 2500 rpm

    SPECIFICATIONS
    ControlDigital
    Duty RatingIntermittent
    Orbit0.2 in (4.9 mm)
    Speed Range500 rpm – 2800 rpm
    Capacity0.5 kg
    Dimensions8.3 in x 6.5 in x 4.8 in (21 cm x 16.5 cm x 12.3 cm) (LxHxW)
    Net Weight9.7 lb (4.4 kg)
    Power230V, 0.6A, 50/60Hz
    Power Consumption135 W
    Safety CertificationCE;  TUV
    Working Environment39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
    *
    *
    *
    *
    *
