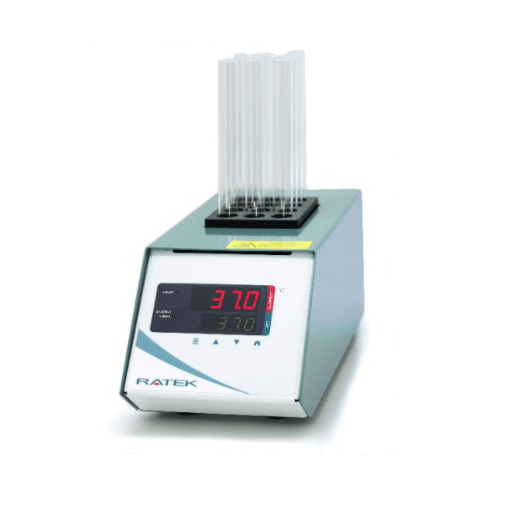

    Ratek 1 Block Dry Block Heater, digital control, Temp range ambient + 5° to 200°C

    Brand: Ratek

    Ratek precision digital block heaters offer excellent temperature stability combined with a large active LED display for easy visibility from across the lab. Available in 3 sizes accommodating 1, 2 or 4 standard blocks, the DBHx000D range is the latest in Ratek’s long established history of quality Australian made block heaters.


    All models feature precision digital PID control with bright dual line LED display which indicates set and current temperatures, combined with simple up and down temperature control buttons. Independent concealed heaters heat each block individually to achieve rapid heat-up times and excellent spacial uniformity.


    A user-configurable process over-temp audible and visual alarm also provides the user with peace of mind. Perhaps the best new feature in the range is the capability to operate at up to 200° C as standard, allowing for a much wider range of digestion applications to be performed in addition to low temperature molecular and biological work.


    Ratek’s block heaters offer simplicity with accuracy and can be run day in day out for any number of general lab applications.

    SKU: DBH1000D
    POA

    i h
    Power requirements240 VAC/50hz 170 watts
    Control typePrecision digital microprocessor
    Control rangeTemperature range ambient + 5°C to 200°C (indicated in 0.1°C increments)
    Control stability+/- 0.2°C with 0.1°C indication
    Safety features- User configurable over-temperature process alarm
    - Independent manual reset element over-temperature safety cutout (internal)
    - Over-current fail-safe fuse

    Overall dimensionsW130 x D315 x H125 mm
    Weight3.2 kg (without block)
    *
    *
    *
    *
    *
