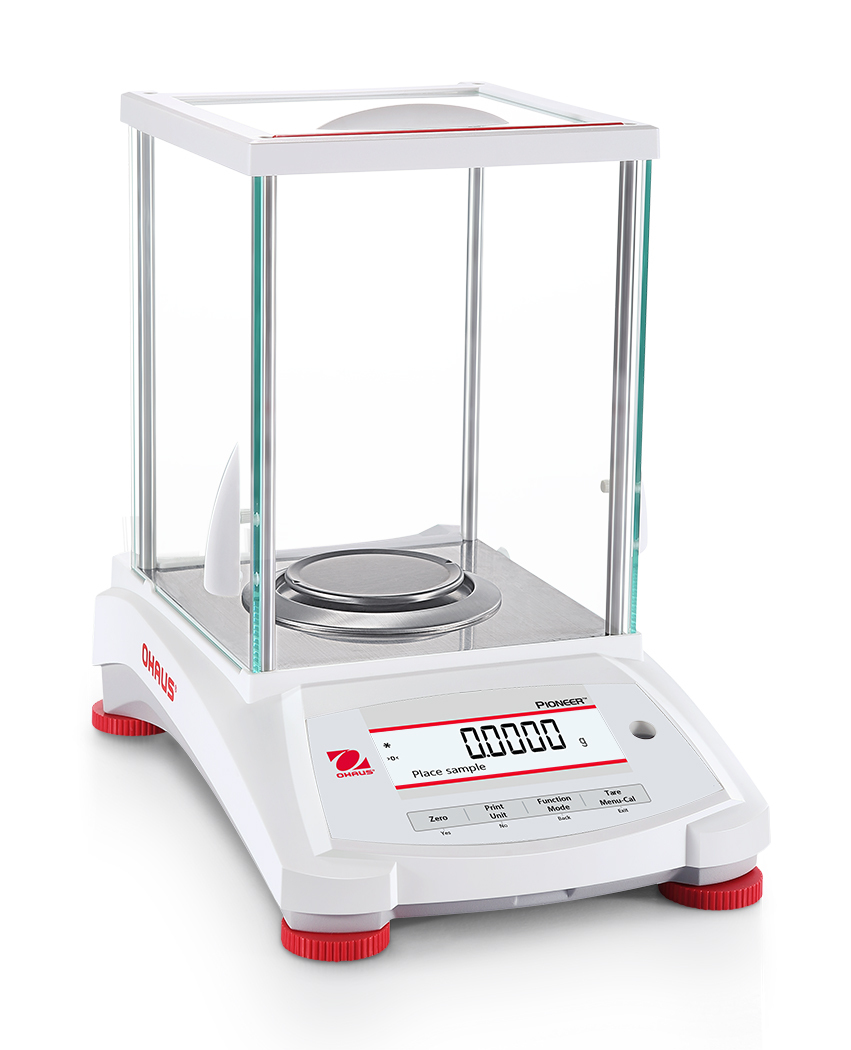

Pioneer Analytical Balance, 4200g x 0.01g, 180mm

Brand: Ohaus

PIONEER™ PRECISION

Affordable Balance to Achieve Reliable Results

PX4202

Maximum Capacity 4,200 g

Readability 0.01 g

Pan Size 180 mm

SKU: PX4202

POA

Want pricing?

Qty:

i h

Overview
Quick Quote / Enquiry

OVERVIEW

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications

Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination

Display

Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)

Operation

AC adapter (included)

Communication

RS232 and USB device (included); GLP/GMP data output with real-time clock

Construction

Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

SPECIFICATIONS

Maximum Capacity	4,200 g
Readability	0.01 g
Pan Size	180 mm
Internal Calibration	InCal™ - Semi Automatic
Draftshield	—
Auxiliary Display Model	Available as an Accessory
Battery Life	Not applicable
Communication	USB; RS232
Dimensions	321 mm x 98 mm x 209 mm (LxHxW)
Display	2-Line LCD with Backlight
Inuse cover	Included
Legal for Trade	No
Linearity ±	0.02 g
Minimum Weight (USP, 0.1%, typical)	20 g
Minimum Weight	8.2 g
Net Weight	7.7 lb (3.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.01 g
Stabilization Time	1 s
Tare Range	To capacity by subtraction
Units of Measurement	Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat
Working Environment	operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
