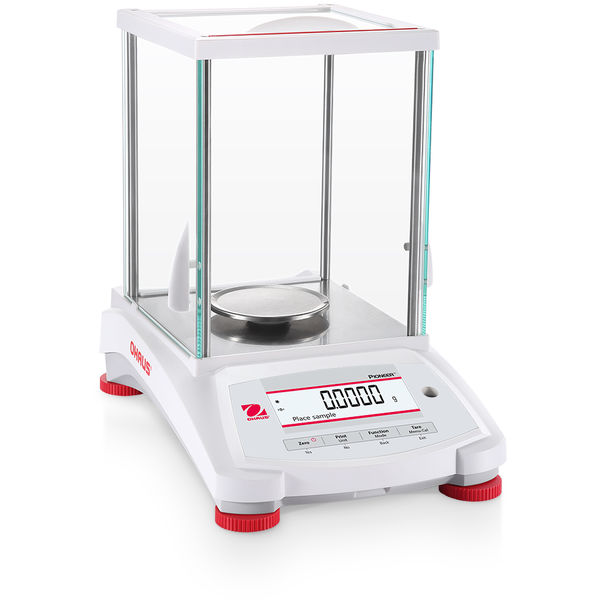

    Pioneer Analytical Balance 220g x 0.1mg, internal calibration, pan size 90mm

    Brand: Ohaus

    PIONEER™ ANALYTICAL

    Combining Economy and High Performance for Essential Weighing

    PX224

    Maximum Capacity 220 g

    Readability 0.1 mg

    Pan Size 90 mm

    SKU: PX224
    POA

    i h
    Product Files
    OVERVIEW
    The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

    Applications
    Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
    Display
    Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
    Operation
    AC adapter (included)
    Communication
    RS232 and USB device (included); GLP/GMP data output with real-time clock
    Construction
    Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
    Design Features
    User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

    SPECIFICATIONS
    Maximum Capacity220 g
    Readability0.1 mg
    Pan Size90 mm
    Internal CalibrationInCal™ - Semi Automatic
    DraftshieldIncluded
    Auxiliary Display ModelAvailable as an Accessory
    Battery LifeNot applicable
    CommunicationUSB;  RS232
    Dimensions321 mm x 309 mm x 209 mm (LxHxW)
    Display2-Line LCD with Backlight
    In-Use CoverIncluded
    Legal for TradeNo
    Linearity ±0.0002 g
    Minimum Weight (USP, 0.1%, typical)200 mg
    Net Weight10 lb (4.5 kg)
    Pan ConstructionStainless Steel
    PowerAC Adapter (Included)
    Repeatability, typical0.0001 g
    Stabilization Time3 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat
    Working Environmentoperability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
