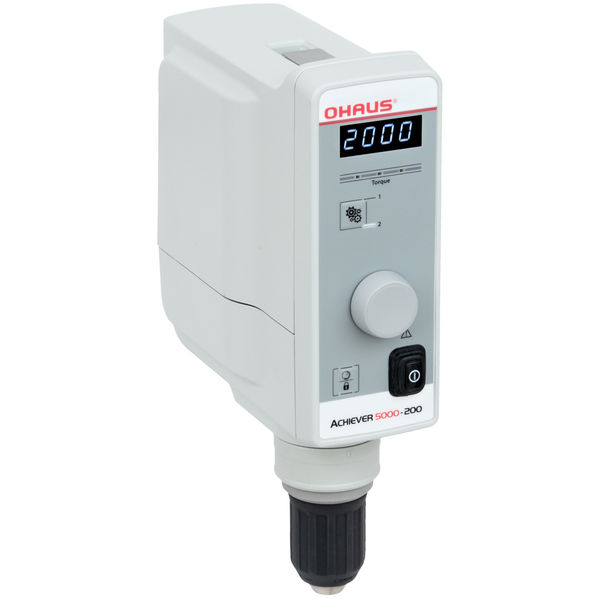

    Overhead Stirrer Achiever 5000, max Torque 200Ncm E-A51ST200

    Brand: Ohaus
    SKU: E-A51ST200
    POA

    i h
    Applications
    Stirring, dissolving, dispersion, emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing.
    Display
    Bright LED digital display for speed, real-time torque tendency LED indicator bar, and integrated timer
    Operation
    Stirring from 6 rpm to 2000 rpm with speed accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm, depending on model. Stable torque at any speed, and volume capacity ranging from 25L to 100L
    Communication
    NA
    Construction
    Sealed aluminum housing with IP54 ingress protection rating. Keyless Chuck for simple, one-hand operation, and brushless motor for quiet operation and main power switch
    Design Features
    Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, and full protection for overload, overtemperature and overcurrent conditions

    SPECIFICATIONS
    Speed Range6 rpm – 400 rpm;  30 rpm – 2000 rpm
    Capacity100 L
    Sample Viscosity (mPa s)maximum 100,000
    Torque (max)200 Ncm
    Chuck Range (Diameter)1-13 mm
    Shaft Pass-Through (Diameter)up to 8.5 mm
    ControlDigital
    Dimensions9.3 in x 12.4 in x 3.5 in (235 mm x 315 mm x 90 mm) (LxHxW)
    DisplayLED Display
    FunctionStirring
    IP ratingIP 54
    Net Weight10.1 lb (4.6 kg)
    Power115 / 230 VAC
    Power Consumption190 W
    Safety CertificationcNemkous
    Speed Accuracy±1 rpm
    Speed Range6 rpm ;  400 rpm ;  30 rpm ;  2,000 rpm
    Timer1 minute – 99 hours, 59 minutes
    Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
    *
    *
    *
    *
    *
