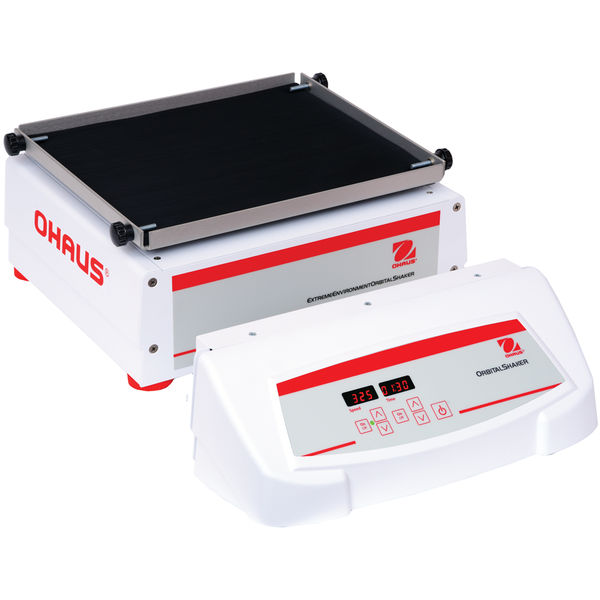

    Open Air Shaker EXTREME - SHEX1619DGAU

    Brand: Ohaus
    SKU: SHEX1619DGAU
    POA

    i h
    Applications
    Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
    Display
    Independent LED displays for speed/time allow the operator to view both settings simultaneously
    Operation
    Detachable 3-wire cord and plug (included)
    Communication
    RS232 interface provides two-way communication for data logging and unit control (digital models)
    Construction
    Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port
    Design Features
    Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)

    SPECIFICATIONS
    MotionOrbital, 19 mm
    Capacity16 kg
    Speed Range15 rpm – 500 rpm
    Tray Size13 in x 13 in (33 cm x 33 cm)
    ControlDigital
    Drive SystemTriple Eccentric;  Brushless DC Motor
    CalibrationSpeed calibration
    CommunicationRS232 (Included)
    Dimensions17.3 in x 5.8 in x 13.9 in (43.9 cm x 14.7 cm x 35.3 cm) (LxHxW)
    Net Weight48.1 lb (21.8 kg)
    Orbit0.8 in (19 mm)
    Power230V, 0.3A, 50/60Hz
    Power Consumption30 W
    Safety CertificationCE;  TUV
    Speed Accuracy±1 rpm, Above 100 rpm ±1% of set speed
    Speed Range15 rpm – 500 rpm
    Timer1 second – 160 hours
    Tray ConstructionAluminum
    Working Environment14°F – 140°F, 100%RH (-10°C – 60°C, 100%RH)
    *
    *
    *
    *
    *
