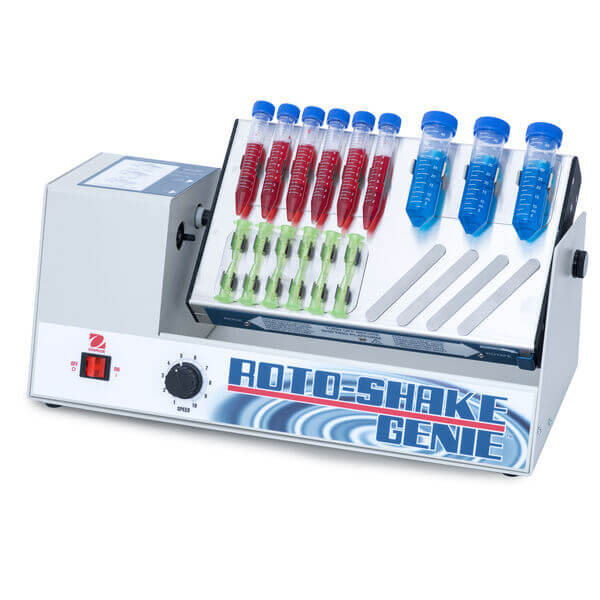

Multi-mode Rotator Roto-Shake Genie, RT22(SI-1106AU), rotate/rock/shake, magnetic plate 200x340mm, rotating speed 5-35rpm, rocking speed 10-70rpm, tilt angle 10°, 5 accessories

Brand: Genie

Multi-Mode Rotator Genie™

Magneto-magic and rugged lab rotator to rotate, rock, or 3D orbit any container

RT22(SI-1106AU)


Motion Rock;Rotate;Shake with Accessories

Capacity 4.5 kg/10 lb centered on axis for rotating / rocking

Tray Size 12 in x 12 in (305 mm x 305 mm) (LxW)


Accessories included:


1 x 83041445 magnetic clip plate to hold 3 x 50ml tubes

1 x 83041443 magnetic clip plate to hold 6 x 15ml tubes

1 x 83041446 magnetic clip plate to hold 12 x 1.5ml tubes

1 x 83041723 Non-Skid Tray

4 x Bag Mounting Strips

SKU: 83041381
POA.

i h
Product Files
Applications
Blood Sample Mixing, Protein Immunoprecipitation, Protein Purification, Protein Delipidation, Cell Lysis Buffer Mixing, Antibody Incubation, ELISA Reagent Mixing, Hybridization Protocols, Enzyme Reaction Mixing, Tissue Sample Staining, Drug Solubility Testing
Display
Adjustment knob with dial markings, or touchscreen LCD for Roto-Rock Genie.
Operation
Roto-Rock Genie supports 100-240 VAC power inputs, Rotator Genie and Roto-Shake Genie support 100 VAC, 120 VAC, and 230 VAC power inputs, power cord included.
Communication
N/A
Construction
Plastic and coated sheet metal housing, rubber feet, rotating platform, rock switch (not for Roto-Rock Genie).
Design Features
Optional stacking tray doubles rocking capacity for Roto-Rock Genie. Besides the clip plates and strips, the magnetic blot box and magnetic microtube boxes are available as accessories.
Specifications
Motion Rock;  Rotate;  Shake with Accessories
Capacity 4.5 kg/10 lb centered on axis for rotating / rocking
Tray Size 12 in x 12 in (305 mm x 305 mm) (LxW)
Control Analog
Rocking Speed 10 rpm - 70 rpm
Dimensions 9.9 in x 10.5 in x 20 in (252 mm x 267 mm x 508 mm) (LxHxW)
Magnetic Platform Size 8 in x 13.5 in (200 mm x 340 mm) (LxW)
Working Environment 0°C - 38°C, 95%RH, non-condensing (32°F - 100°F, 95%RH, non-condensing)
Tilt Angle 10°
Accessories Included Clip Plate for 28-30 mm tubes;  Non-Skid Tray;  Clip Plate for 10-13 mm tubes;  4x Bag Mounting Strips;  Clip Plate for 15-17 mm tubes
Net Weight 26 lb (11.8 kg)
Safety Certification CE
Rotating Speed 5 rpm - 35 rpm
Power 230V, 50Hz
*
*
*
*
*
