Description

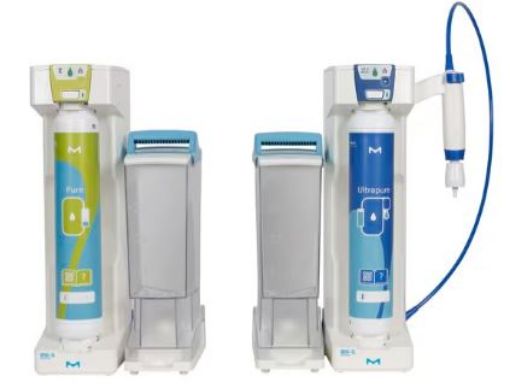

General descriptionThe Milli-Q® SQ 240 Purification System Kit is composed of the Milli-Q® SR 240 and the Milli-Q® SQ 200 water purification systems. The Milli-Q® SR 240 water purification system delivers pure reverse osmosis (RO) water to a mobile SQ Switch 3.5 L tank. It comes equipped with a Gravity valve to dispense RO water directly from the SQ Switch tank base.
The Milli-Q® SQ 200 water purification system delivers ultrapure (Type 1) water from the SQ Switch 3.5 L tank filled with pure RO water. A flexible handset dispenser delivers the ultrapure water. The Milli-Q® SQ 240 Purification System Kit is 1 of 6 preset configurations available for the Milli-Q® SQ 2Series family, which provides full autonomy to users and is adaptable to lab requirements and evolutions. This product is a Design for Sustainability (DfS) developed product.
Features and Benefits
- Simple, manual handset dispenser allows any new or untrained user to deliver ultrapure water at variable flow rates, from up to 1.6 L/min to drop by drop
- Reliable 18.2 MΩ·cm resistivity ultrapure (Type 1) water quality is indicated at a glance by a colored LED
- TOC is reduced by an integrated photo-oxidation UV lamp
- Freshly dispensed ultrapure water is available anywhere, in or out of the lab, from the autonomous Milli-Q® SQ 200 ultrapure dispensing module thanks to the mobile SQ Switch tank
- Fast (as little as 6 min) refilling of the mobile SQ Switch tank with freshly produced pure RO water thanks to the high-flow RO cartridge (up to 42 L/h) of the pure water production station; RO water recovery loop saves 50% of the rejected water; automatic RO membrane rinsing maintains its high performance
- Compact setup and self-guided installation manual and videos let you plug the system wherever is convenient for your lab activity and move it later if needed
- Unlimited scalability with one pure RO water production station able to feed multiple autonomous Milli-Q® SQ 200 ultrapure dispensing modules (just plug in an electrical outlet); Supports lab activity expansion while limiting budget investment
- Individual Twist & Lock cartridge replacement simplifies maintenance and limits running cost
- Compact size plus water and energy savings support lab sustainability efforts
Properties
AC/DC input
100 V / 240 V AC, 50-60 Hz
Manufacturer/tradename
Milli-Q®
Greener alternative product characteristics
Design for Energy Efficiency
Sustainability
Greener Alternative Product
Parameter
≤1.6 L/min distribution flow rate (Ultrapure water from Handset Dispenser)
≤42 L/hr make-up flow rate (Pure RO water)
≤6 L/min distribution flow rate (Pure RO water from SQ Gravity valve)
10 kg operating weight (22 lb) (production station with SQ Switch 3.5 L tank)
12 kg operating weight (26.5 lb) (dispensing module with SQ Switch 3.5 L tank)
14 kg operating weight (13.9 lb)
30 L/day max. usage
Resistivity
18.2 MΩ-cm, 25 degrees
System H
50.3 cm (19.8 in.)
62.9 cm (24.8 in.) , with Handset Dispenser tubing
System W
26.7 cm (10.5 in.) , dispensing station
26.7 cm (10.5 in.) , production station
38.4 cm (15.1 in.) , dsipensing module including Handset Dispenser
System depth
22 cm (8.7 in.)
Impurities
Microbes: < 10 cfu/L (typically < 1 cfu/L) with SQPAK™ Final or Bio Final filters
Particulates: < 1 unit/mL (particulates > 0.22 µm with SQPAK™ Final or Bio Final filters
Pyrogens: < 0.001 EU/mL with SQPAK™ Bio Final filter
Total organic carbon (TOC) residue
≤5 ppb
Input
feed water nature potable tap water (Lab feed water connection must be a 1/2" Male thread NPT/BSP/GAZ)
Output
product water quality: type 3 water (RO water)
product water quality: type 1 water (18.2 MΩ·cm)
Conductivity
0.055 μS/cm
