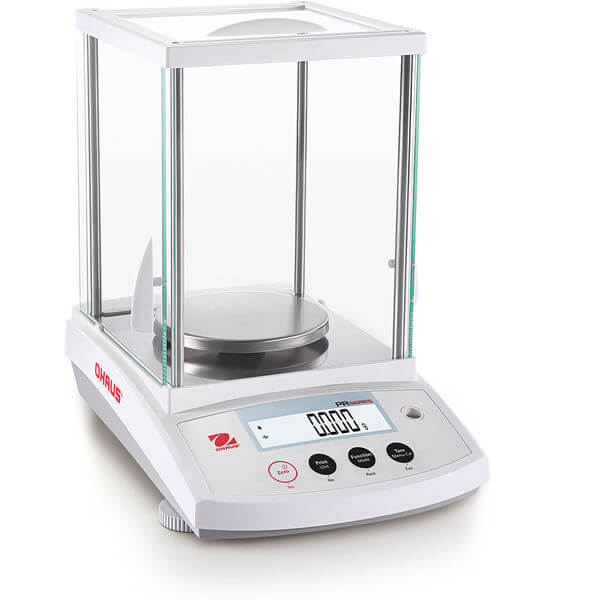

Laboratory Balance PR Series Analytical & Precision PR523 - 520G X 1MG

Brand: Ohaus

SKU: PR523

POA

Want pricing?

Qty:

i h

Product Files

PR523 Datasheet AP_

Overview
Quick Quote / Enquiry

Applications

Basic Weighing, Parts Counting, Percent Weighing

Display

Backlit Liquid Crystal Display (LCD)

Operation

AC adapter (included)

Communication

RS232 (one port included)

Construction

ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

SPECIFICATIONS

Maximum Capacity	520 g
Readability	0.001 g
Pan Size	4.7 in (120 mm)
Internal Calibration	InCal™ - Semi Automatic
Draftshield	Included
Auxiliary Display Model	Available as an Accessory
Battery Life	Not applicable
Communication	RS232
Dimensions	12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
Display	LCD with backlight
In-Use Cover	Included
Legal for Trade	No
Linearity ±	0.002 g
Net Weight	10 lb (4.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.001 g
Stabilization Time	2 s
Tare Range	To capacity by subtraction
Units of Measurement	Milligram; Pennyweight; Ounce Troy; Newton; Taiwan Tael; Gram; Kilogram; Grain; Pound; Ounce; Carat; Custom
Working Environment	operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
