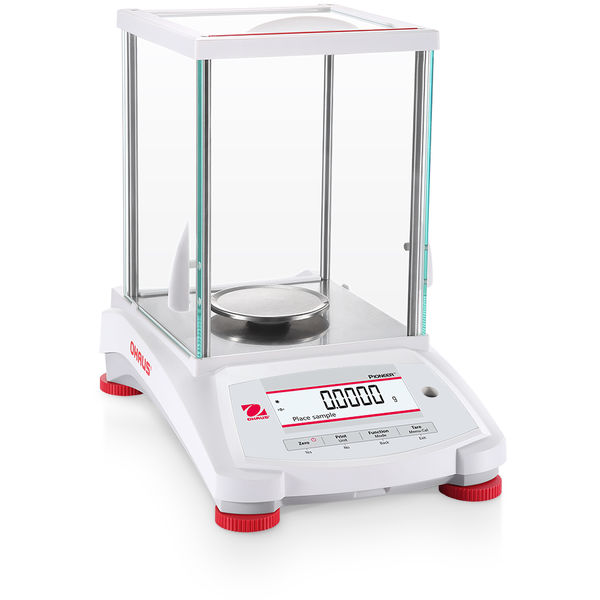

    Laboratory Balance Pioneer Analytical PX224/E - 220G X 0.1MG EXTERNAL CAL

    Brand: Ohaus
    SKU: PX224/E
    POA

    i h
    Product Files
    Applications
    Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
    Display
    Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
    Operation
    AC adapter (included)
    Communication
    RS232 and USB device (included); GLP/GMP data output with real-time clock
    Construction
    Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
    Design Features
    User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

    SPECIFICATIONS
    Maximum Capacity220 g
    Readability0.1 mg
    Pan Size90 mm
    Internal CalibrationNot applicable
    DraftshieldIncluded
    Auxiliary Display ModelAvailable as an Accessory
    Battery LifeNot applicable
    CommunicationUSB;  RS232
    Dimensions321 mm x 309 mm x 209 mm (LxHxW)
    Display2-Line LCD with Backlight
    In-Use CoverIncluded
    Legal for TradeNo
    Linearity ±0.0002 g
    Minimum Weight (USP, 0.1%, typical)200 mg
    Net Weight10 lb (4.5 kg)
    Pan ConstructionStainless Steel
    PowerAC Adapter (Included)
    Repeatability, typical0.0001 g
    Stabilization Time3 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat
    Working Environmentoperability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
