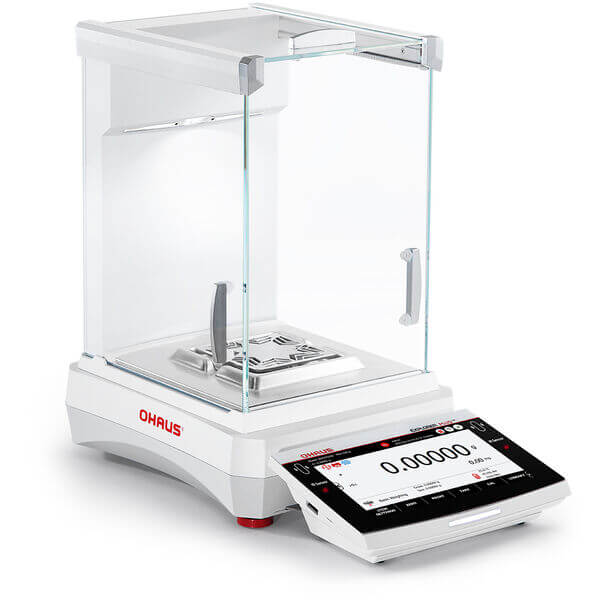

    Laboratory Balance Explorer Semi-Micro EXP225/AD - 120 g X 0.01 mg AUTODOOR

    Brand: Ohaus
    SKU: EXP225/AD
    POA.

    i h



    Applications
    Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
    Display
    7-inch TFT 16.7M Color Touch Screen with Glass Overlay
    Operation
    AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
    Communication
    USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
    Construction
    Modular Design, Metal base and housing, Zinc alloy areo weighing pan, Enhanced automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Motorized leveling, Built-in ionizer, 2 touchless sensors, Sample spotlight and status lights
    Design Features
    Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries

    Specifications
    Maximum Capacity220 g
    Readability0.01 mg
    Pan Size80 mm x 80 mm
    Internal CalibrationAutoCal™ - Automatic
    DraftshieldIncluded
    Dimensions408 mm x 372 mm x 229 mm (LxHxW)
    Battery LifeNot Applicable
    Legal for TradeNot Applicable
    Auxiliary Display ModelAvailable as an Accessory
    Auto DoorAnti-pinch autodoors
    Tare RangeTo capacity by subtraction
    Working Environment50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
    Net Weight7.8 kg
    In-Use CoverIncluded
    CommunicationUSB device;  USB host x 2;  RS232;  Ethernet TCP/IP;  WiFi/Bluetooth (available as an accessory)
    PowerAC Adapter (Included)
    Units of MeasurementOunce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Gram;  Tola;  Mesghal;  Carat;  Ounce
    Minimum Weight2 mg
    Display7" colour TFT touchscreen
    Pan ConstructionZinc Alloy
    Built-in IonizerYes
    Stabilization Time5 s
    Repeatability, typical0.02 mg
    Minimum Weight (USP, 0.1%, typical)20 mg
    Linearity ±0.2 mg
    *
    *
    *
    *
    *
