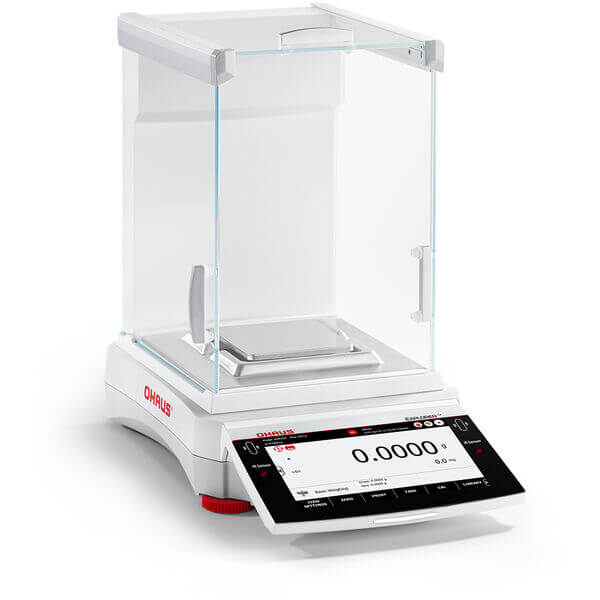

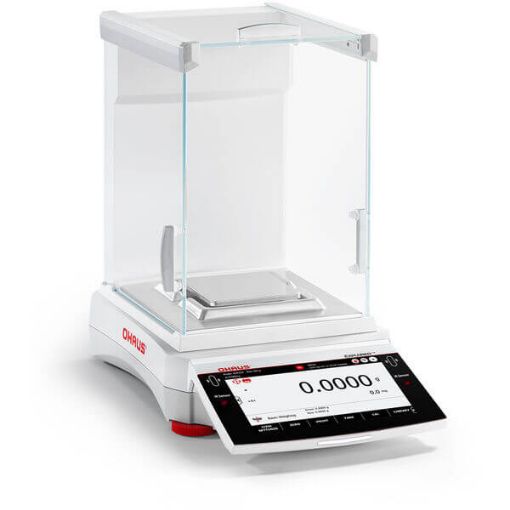

    Laboratory Balance Explorer Analytical EXR124 - 120 g X 0.1mg

    Brand: Ohaus
    SKU: EXR124
    POA.

    i h
    Applications
    Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
    Display
    7-inch TFT 16.7M Color Touch Screen with Glass Overlay
    Operation
    AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
    Communication
    USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
    Construction
    Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status lights
    Design Features
    Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries

    Specifications
    Maximum Capacity120 g
    Readability0.1 mg
    Pan Size90 mm x 90 mm
    Internal CalibrationAutoCal™ - Automatic
    DraftshieldIncluded
    Dimensions393 mm x 370 mm x 230 mm (LxHxW)
    Battery LifeNot Applicable
    Legal for TradeNot Applicable
    Auxiliary Display ModelAvailable as an Accessory
    Auto DoorNot Applicable
    Tare RangeTo capacity by subtraction
    Working Environment10°C – 30°C, 80%RH, non-condensing
    Net Weight7.4 kg
    In-Use CoverIncluded
    CommunicationUSB device;  USB host x 2;  RS232;  Ethernet TCP/IP;  WiFi/Bluetooth (available as an accessory)
    PowerAC Adapter (Included)
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Tola;  Mesghal;  Carat;  Ounce
    Minimum Weight10 mg
    Display7" colour TFT touchscreen
    Pan ConstructionStainless Steel
    Built-in IonizerNo
    Stabilization Time2 s
    Repeatability, typical0.1 mg
    Minimum Weight (USP, 0.1%, typical)100 mg
    Linearity ±0.2 mg
    *
    *
    *
    *
    *
