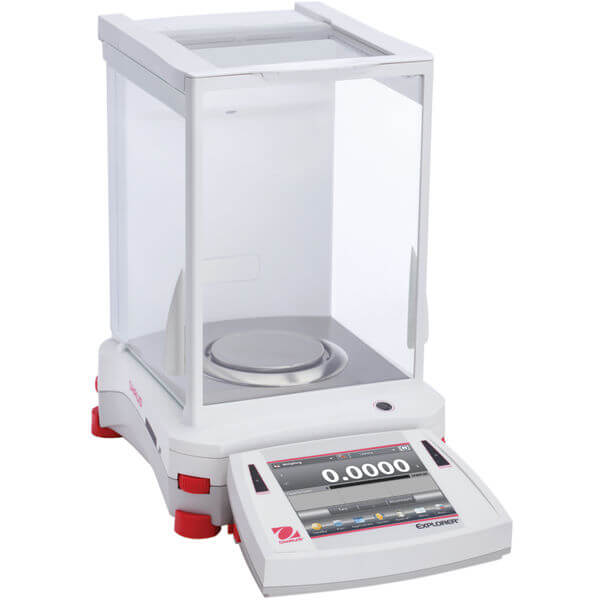

    Laboratory Balance Explorer Analytical EX124/AD - 120G X 0.1MG AUTODOOR

    Brand: Ohaus
    SKU: EX124/AD
    POA

    i h
    Applications
    Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
    Display
    5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
    Operation
    AC adapter (included)
    Communication
    RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
    Construction
    Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door, illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover
    Design Features
    Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

    SPECIFICATIONS
    Maximum Capacity120 g
    Readability0.1 mg
    Pan Size3.5 in (90 mm)
    Internal CalibrationAutoCal™ - Automatic
    DraftshieldIncluded
    Auto DoorIncluded
    Auxiliary Display ModelAvailable as an Accessory
    Battery LifeNot applicable
    CommunicationEthernet (Available as an Accessory);  USB (Included);  RS232 (Included)
    Dimensions15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
    DisplayFull-color 5.7 in VGA, touch screen
    In-Use CoverIncluded
    Legal for TradeNot applicable
    Linearity ±0.0002 g
    Minimum Weight (USP, 0.1%, typical)0.16 g
    Net Weight15.2 lb (6.9 kg)
    Pan ConstructionStainless Steel
    PowerAC Adapter (Included)
    Repeatability, typical0.0001 g
    Stabilization Time2 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Kilogram;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
    Working Environment50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
    *
    *
    *
    *
    *
