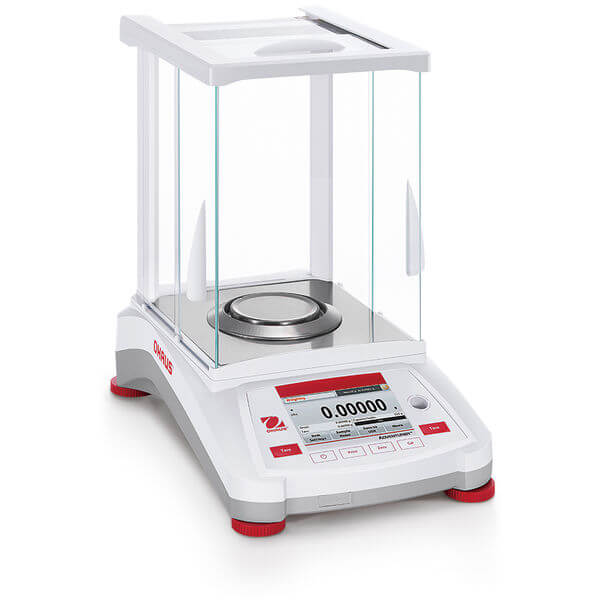

    Laboratory Balance Adventurer Semi-Micro AX225D - 102/220G X 0.01/0.1MG

    Brand: Ohaus

    Adventurer™ Semi-Micro

    Intuitive Balances Designed for Routine Weighing

    AX225D


    Maximum Capacity 102 g/220 g

    Readability 0.00001 g;0.0001 g

    Pan Size 3.15 in (80 mm)

    Item Number: 30852306

    SKU: AX225D
    POA.

    i h
    Applications
    Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
    Display
    4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
    Operation
    AC adapter (included)
    Communication
    RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
    Construction
    Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
    Design Features
    Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

    Specifications
    Maximum Capacity102 g/220 g
    Readability0.00001 g;  0.0001 g
    Pan Size3.15 in (80 mm)
    Internal CalibrationAutoCal™ - Automatic
    DraftshieldIncluded
    Dimensions13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW)
    Legal for TradeNot Applicable
    Auxiliary Display ModelAvailable as an Accessory
    Auto DoorNot Applicable
    Working Environment10°C – 30°C, 80%RH, non-condensing
    Net Weight11.3 lb (5.1 kg)
    In-Use CoverIncluded
    CommunicationUSB;  RS232 (Included);  USB Host
    PowerAC Adapter (Included)
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
    DisplayFull-Color 4.3 in Touchscreen WQVGA
    Pan ConstructionStainless Steel
    Built-in IonizerNo
    Stabilization Time8 s
    Repeatability, typical0.00002 g;  0.0001 g
    Minimum Weight (USP, 0.1%, typical)20 mg
    Linearity ±0.1 mg
    *
    *
    *
    *
    *
