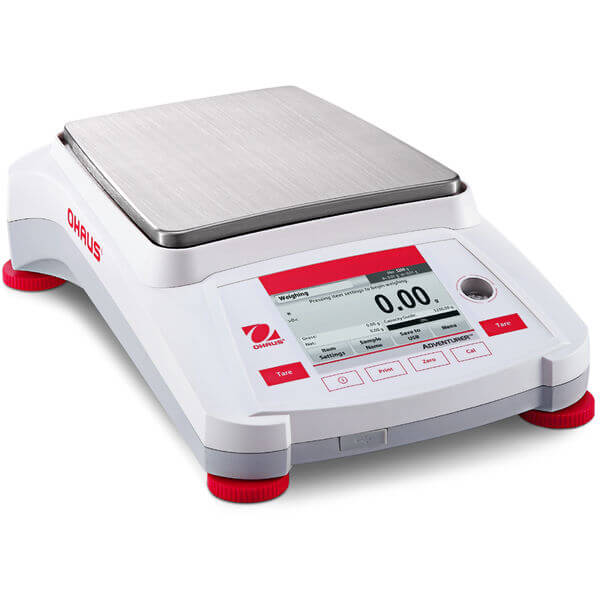

    Laboratory Balance Adventurer Precision AX8201 - 8200G X 0.1G

    Brand: Ohaus
    SKU: AX8201
    POA

    i h
    Applications
    Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
    Display
    4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
    Operation
    AC adapter (included)
    Communication
    RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
    Construction
    Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
    Design Features
    Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

    SPECIFICATIONS
    Maximum Capacity8,200 g
    Readability0.1 g
    Pan Size7.7 in x 6.9 in (195 mm x 175 mm)
    Internal CalibrationAutoCal™ - Automatic
    Draftshield
    Auto DoorNot applicable
    Auxiliary Display ModelAvailable as an Accessory
    Battery LifeNot applicable
    CommunicationUSB;  RS232 (Included);  USB Host
    Dimensions13.93 in x 3.94 in x 9.05 in (354 mm x 100 mm x 230 mm) (LxHxW)
    DisplayHigh resolution full colour VGA touch display
    In-Use CoverIncluded
    Legal for TradeNot applicable
    Linearity ±0.2 g
    Minimum Weight (USP, 0.1%, typical)200 g
    Net Weight8.4 lb (3.8 kg)
    Pan ConstructionStainless Steel
    PowerAC Adapter (Included)
    Repeatability, typical0.1 g
    Stabilization Time1.5 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
    Working Environment50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
