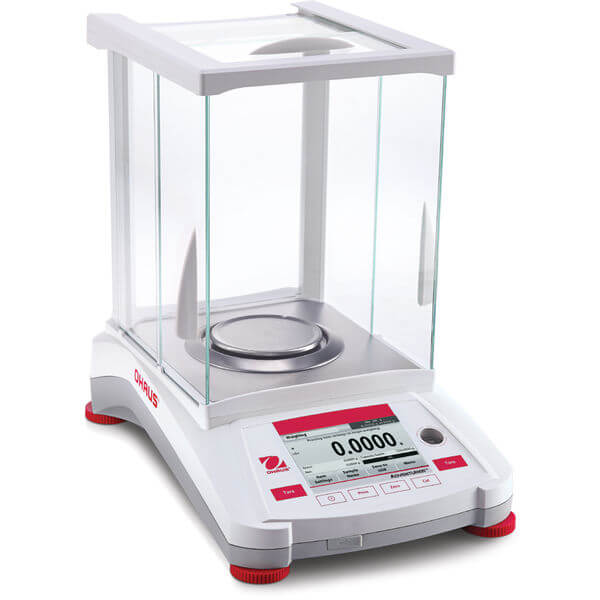

Laboratory Balance Adventurer Analytical AX224AU - 220G X 0.001G TRADE APPROVED VERSION

Brand: Ohaus
SKU: AX224AU
POA

i h
Product Files
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
Display
4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

SPECIFICATIONS
Maximum Capacity 220 g
Readability 0.1 mg
Pan Size 90 mm
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Auxiliary Display Model Available as an Accessory
Battery Life Not applicable
Communication USB;  RS232 (Included);  USB Host
Dimensions 354 mm x 340 mm x 230 mm (LxHxW)
Display Full-Color 4.3 in Touchscreen WQVGA
In-Use Cover Included
Legal for Trade Not applicable
Linearity ± 0.2 mg
Minimum Weight (USP, 0.1%, typical) 0.2 g
Net Weight 11.3 lb (5.1 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.1 mg
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Singapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
*
*
*
*
*
