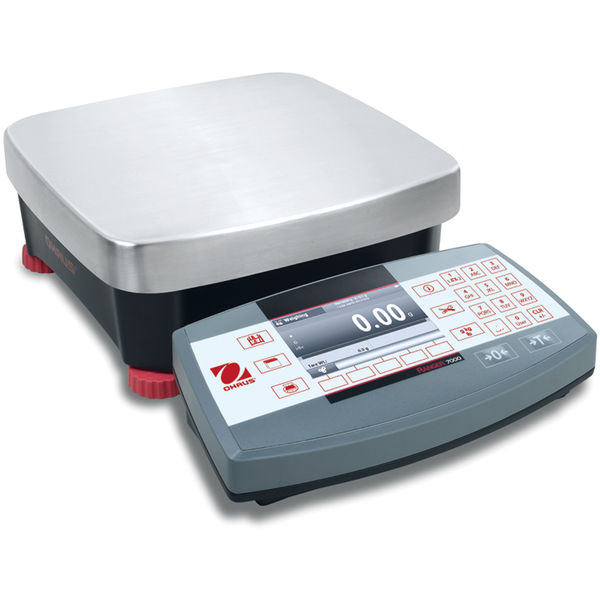

    Industrial Compact Bench Scales Ranger 7000 R71MD3 - 3KG X 0.05G EXTERNAL CAL

    Brand: Ohaus
    SKU: R71MD3
    POA.

    i h
    Applications
    Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
    Display
    4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness
    Operation
    AC power (included) or rechargeable battery (accessory sold separately)
    Communication
    Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
    Construction
    Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
    Design Features
    Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare

    Specifications
    Maximum Capacity6 lb (3 kg)
    Readability0.0001 lb (0.05 g)
    Readability (Certified)0.001 lb (0.5 g)
    Platform Size11 in x 11 in (280 mm x 280 mm)
    Battery Life12 Hours with Rechargeable Battery
    Second Scale InputYes
    Communication2nd RS232 (Available as an Accessory);  Ethernet (Available as an Accessory);  USB (Included);  RS232 (Included)
    Dimensions16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
    Display4.3’’/10.9cm TFT Graphic LCD
    Internal CalibrationNot Applicable
    In-Use CoverIncluded
    Legal for TradeNTEP Certified;  EC Type Approvable;  Measurement Canada Approved
    Linearity ±0.1 g
    Net Weight15 lb (6.8 kg)
    Outputs2 In/4 Out digital I/O
    Platform ConstructionStainless Steel
    PowerRechargeable Battery (Not Included);  AC Power (Included)
    Protection RatingIP54
    Tare RangeTo capacity by subtraction
    Transportation CaseNot Applicable
    Units of MeasurementGram;  Kilogram;  Pound;  Ounce;  Custom;  Pound:Ounce
    Working Environment14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
