Image is only for illustration purposes, refer to description for more information

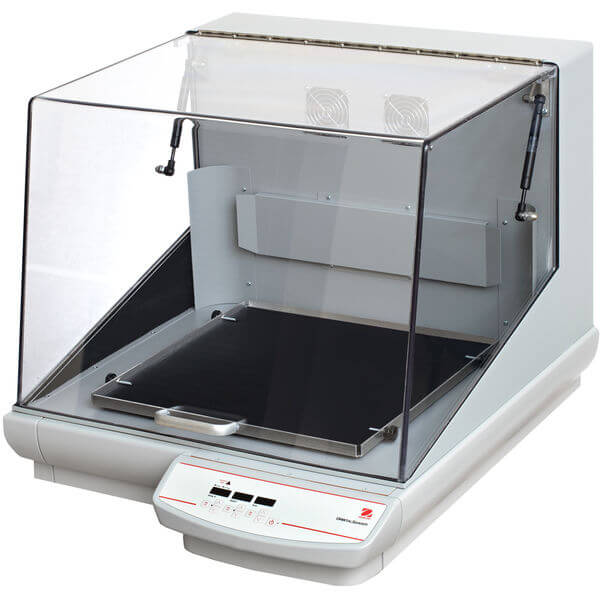

Incubating Orbital Shaker HEAVY DUTY - ISHD23HDGAU

Brand: Ohaus

SKU: ISHD23HDGAU

POA

Want pricing?

Qty:

i h

Product Files

Incubating Heavy Duty Shakers Datasheet

Overview
Quick Quote / Enquiry

Applications

Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures

Display

Independent LED displays for temperature, speed and time

Operation

N/A

Communication

RS232

Construction

Aluminum and Cycoloy

Design Features

Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

SPECIFICATIONS

Motion	Orbital, 25 mm
Capacity	50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
Temp. Range	Ambient +5°C – 65°C
Uniformity	± 0.5°C at 37°C
Speed Range	15 rpm – 500 rpm
Tray Size	18 in x 18 in (457 mm x 457 mm)
Calibration	Temperature calibration
Communication	RS232
Control	Digital
Dimensions	32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW)
Drive System	Triple Eccentric; Brushless DC Motor
Inner Dimensions	20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)
Net Weight	224.07 lb (101.6 kg)
Power	230V, 8A, 50/60Hz
Power Consumption	800 W
Safety Certification	TUV
Speed Accuracy	Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Speed Range	15 rpm – 500 rpm
Timer	1 second – 160 hours
Tray Construction	Aluminum
Working Environment	59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
