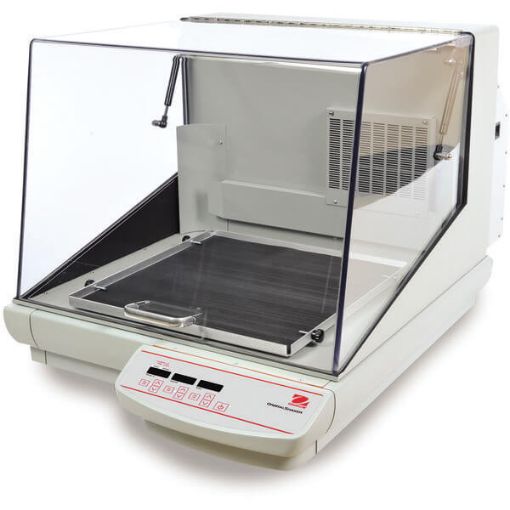

    Incubating Orbital Shaker HEAVY DUTY - ISHD23CDGAU

    Brand: Ohaus
    SKU: ISHD23CDGAU
    POA

    i h
    Applications
    Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
    Display
    Independent LED displays for temperature, speed and time
    Operation
    N/A
    Communication
    RS232
    Construction
    Aluminum and Cycoloy
    Design Features
    Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

    SPECIFICATIONS
    MotionOrbital, 25 mm
    Capacity50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
    Temp. Range15°C below Ambient – 65°C
    Uniformity± 0.5°C at 37°C
    Speed Range15 rpm – 500 rpm
    Tray Size18 in x 18 in (457 mm x 457 mm)
    CalibrationTemperature calibration
    CommunicationRS232
    ControlDigital
    Dimensions32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW)
    Drive SystemTriple Eccentric;  Brushless DC Motor
    Inner Dimensions20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)
    Net Weight290.41 lb (131.7 kg)
    Power230V, 10A, 50/60Hz
    Power Consumption800 W
    Safety CertificationTUV
    Speed AccuracyAbove 100rpm +/- 1%, Below 100rpm /- 1 rpm
    Speed Range15 rpm – 500 rpm
    Timer1 second – 160 hours
    Tray ConstructionAluminum
    Working Environment59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
