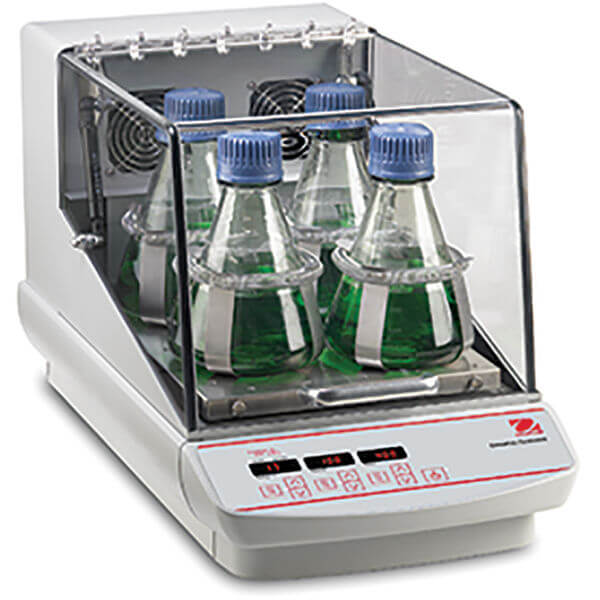

Incubating Orbital Shaker HEAVY DUTY - ISHD16HDGAU

Brand: Ohaus
SKU: ISHD16HDGAU
POA

i h
Product Files
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

SPECIFICATIONS
Motion Orbital, 19 mm
Capacity 35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm
Temp. Range Ambient +5°C – 65°C
Uniformity ± 0.5°C at 37°C
Speed Range 15 rpm – 500 rpm
Tray Size 13 in x 11 in (330 mm x 279 mm)
Calibration Temperature calibration
Communication RS232
Control Digital
Dimensions 25.5 in x 16 in x 14 in (648 mm x 406 mm x 356 mm) (LxHxW)
Drive System Triple Eccentric;  Brushless DC Motor
Inner Dimensions 13.4 in x 9.5 in x 12 in (340 mm x 241 mm x 305 mm) (LxHxW)
Net Weight 79.11 lb (35.9 kg)
Power 230V, 5A, 50/60Hz
Power Consumption 450 W
Safety Certification TUV
Speed Accuracy Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Speed Range 15 rpm – 500 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
*
*
*
*
*
