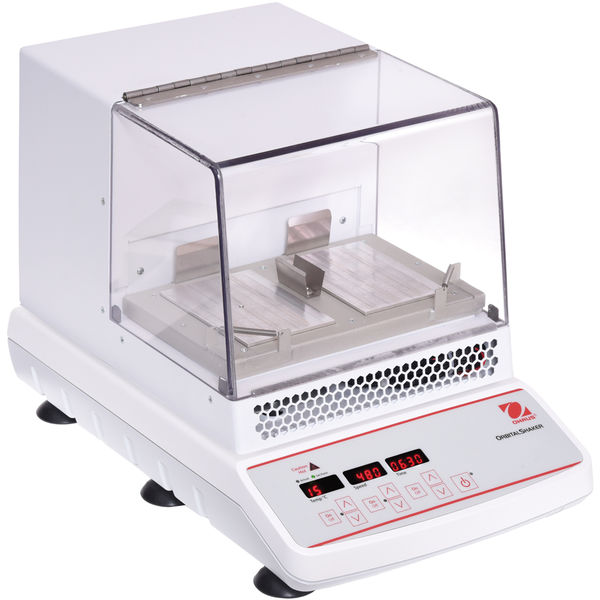

Incubating Cooling Orbital Shaker - ISICMBCDGAU

Brand: Ohaus
SKU: ISICMBCDGAU
POA

i h
Product Files
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicator

SPECIFICATIONS
Motion Orbital, 3 mm
Capacity 2 Microplates or 2 Modular Blocks
Temp. Range 10°C below Ambient – 65°C
Uniformity ± 0.5°C at 37°C
Speed Range 100 rpm – 1200 rpm
Calibration Temperature calibration
Control Digital
Dimensions 17.9 in x 10.5 in x 11 in (45.5 cm x 26.7 cm x 27.9 cm) (LxHxW)
Drive System Triple Eccentric;  Brushless DC Motor
Net Weight 29.5 lb (13.4 kg)
Orbit 0.1 in (3 mm)
Power 230V, 1A, 50/60Hz
Power Consumption 200 W
Safety Certification CE;  TUV
Speed Accuracy ±2%
Speed Range 100 rpm – 1200 rpm
Timer 1 second – 160 hours
Working Environment 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
*
*
*
*
*
