Image is only for illustration purposes, refer to description for more information

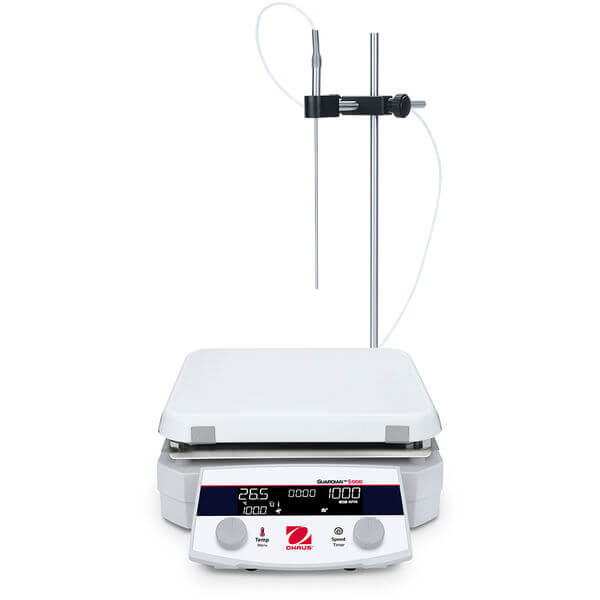

Hotplate-Stirrer with temp probe e-G52HS10C 230V -K1

Name: Hotplate-Stirrer with temp probe e-G52HS10C 230V -K1
SKU: E-G52HS10C-K1
Price: null AUD
Availability: InStock

Brand: Ohaus

Guardian™ 5000 Hotplates & Stirrers

Expertly Engineered Hotplate Stirrers with Premium Safety and Versatility Features for Everyday Use

E-G52HS10C -K1

Function Heating and Stirring

Capacity 22 L

Plate Construction Ceramic

Item Number: 30910686

SKU: E-G52HS10C-K1

POA.

Want pricing?

Qty:

i h

Product Files

Data Sheet_e-G52_(EN)_AP

Overview
Quick Quote / Enquiry

Applications

Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling

Display

Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow

Operation

100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control

Communication

RS232 for data logging and remote control

Construction

Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet

Design Features

Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)

Specifications

Function	Heating and Stirring
Capacity	22 L
Plate Construction	Ceramic
Plate Size	10 in x 10 in (26 cm x 26 cm)
Temp. Range	Ambient +5°C – 500°C
Speed Range	50 rpm – 1,800 rpm
Calibration	Temperature Calibration 3 Plate/3 Probe
Control	Digital
Dimensions	15.84 in x 4.65 in x 11.28 in (402 mm x 118 mm x 287 mm) (LxHxW)
Display	High contrast brilliant LCD display
Net Weight	14.8 lb (6.7 kg)
Power	220V-240V~ 10A 50/60Hz
Safety Certification	CE; TUV
Speed Stability	+/-2%
Temperature Probe	Pt1000
Temp. Stability	+/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
Timer	1 minute – 99 hours, 59 minutes
Working Environment	5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
