Image is only for illustration purposes, refer to description for more information

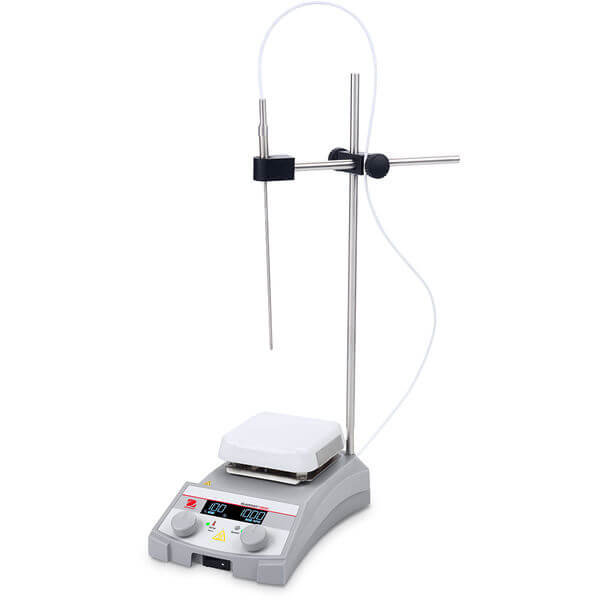

Hotplate-Stirrer with temp probe e-G31HS04C 230v -K1

Brand: Ohaus
SKU: E-G31HS04C-K1
POA

i h
Product Files
Applications
Boiling Liquids, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon
Operation
Stirring from 80 to 1600 rpm, ambient temperature range from +5°C to 500°C (ceramic top) or 380°C (ceramic-coated steel top), power cord (included), stirring models include PTFE-coated stir bar
Communication
N/A
Construction
Durable metal housing, PET front panel, control knobs, on/off switch for heater disconnect, built-in support rod holder, easy-to-clean ceramic or ceramic-coated stainless steel tops
Design Features
Hot top indicator light to protect user; green indicator lights illuminate when unit is heating and stirring; temperature probe connector for use with optional temperature probe

Specifications
Function Heating and Stirring
Capacity 15 L
Plate Construction Ceramic
Plate Size 4 in x 4 in (102 mm x 102 mm)
Temp. Range Ambient +5°C – 500°C
Control Digital
Power Consumption 550 W
Dimensions 10.4 in x 4.3 in x 6.4 in (264 mm x 110 mm x 163 mm) (LxHxW)
Display Custom Back-lit LCD
Working Environment 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
Speed Range 80 to 1600 rpm
Net Weight 5.5 lb (2.5 kg)
Safety Certification TUV
Temp. Stability +/-3% Plate, Below 100°C +/-2°C and +/-2% Probe, Below 100°C +/-2°C
Temperature Probe Pt1000
Calibration 1 Plate/1 Probe Temperature Calibration
Power 220V-240V~ 4A 50/60Hz
*
*
*
*
*
