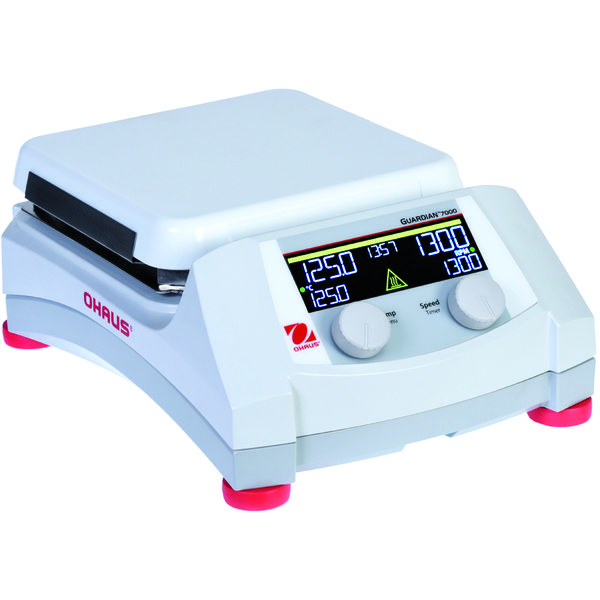

    Hotplate-Stirrer GUARDIAN 7000 HPS 7X7 CERAMIC G71HS07C

    Brand: Ohaus

    Guardian™ 7000 Hotplates & Stirrers

    Durable Digital Hotplate Stirrers with Superior Safety Features and Intelligent Performance

    E-G71HS07C


    Function Heating and Stirring

    Capacity 15 L

    Plate Construction Ceramic

    Item Number: 30500601

    SKU: G71HS07C
    POA.

    i h
    Applications
    Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
    Display
    Backlit LCD Display for temperature, speed and time, green indicator lights when unit is heating and stirring, two prominent hot top indicator lights, icons for SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, probe in use, Single Point Calibration
    Operation
    Timer, Stirring from 60 to 1600 rpm, temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), 8” (20.3 cm) stainless steel RTD temperature probe, 1.5” (3.8 cm) PTFE coated stir bar, in-use cover
    Communication
    USB port provides flexibility for programming of repeat applications and enhancing safety with SmartLink™ technology; the long range user detection function operated with the OHAUS Bluetooth dongle accessory (sold separately)
    Construction
    Probe connection, SmartHousing™ stays cool to the touch and is chemical-resistant, IP21 Ingress Protection, hardened glass front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy-to-clean ceramic or aluminum tops
    Design Features
    Hot top indicator lights, audible alarm, SmartHeat™ temperature limiting function, SafetyHeat™ shuts off heater in the event of malfunction, temperature calibration feature for 5 probe & 5 plate setpoints, temperature priority function, SmartRate™ functions

    Specifications
    FunctionHeating and Stirring
    Capacity15 L
    Plate ConstructionCeramic
    Plate Size7 in x 7 in (178 mm x 178 mm)
    Temp. RangeAmbient +5°C – 500°C
    Speed Range60 rpm – 1,600 rpm
    CalibrationTemperature Calibration 5 Plate/5 Probe
    CommunicationUSB
    ControlDigital
    Dimensions12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
    DisplayCustom Back-lit LCD
    In-Use CoverAvailable as an Accessory
    Net Weight5.7 lb (2.6 kg)
    Power230V, 6.0A, 50/60Hz
    Power Consumption1,242 W
    Safety CertificationTUV
    Speed Range60 to 1600 rpm
    Speed Stability+/-2%
    Temperature ProbePt1000
    Temp. Stability+/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-1°C
    Timer1 minute – 99 hours, 59 minutes
    Working Environment41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
    *
    *
    *
    *
    *
