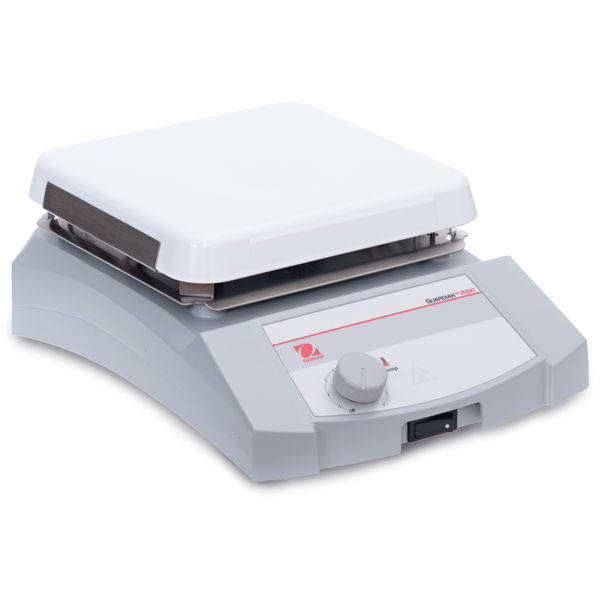

Image is only for illustration purposes, refer to description for more information

Hotplate e-G21HP07C 230V

Brand: Ohaus
SKU: E-G21HP07C
POA

i h
Product Files
Applications
Boiling Liquids, Basic Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
Display
Prominent hot top indicator light, green indicator lights when unit is heating and stirring
Operation
Simple knob control, stirring up to 1600 rpm, temperature up to 500°C (ceramic top) or 380°C (ceramic coated stainless steel top), power cord (included), stirring models include PTFE coated stir bar
Communication
N/A
Construction
Durable metal housing, PET front panel, control knobs, ON/OFF switch for heater disconnect, built in support rod holder, easy to clean resin, ceramic or ceramic coated stainless steel tops
Design Features
Hot top indicator light to protect user, green indicator lights illuminate when unit is heating and stirring

Specifications
Function Heating
Capacity 15 L
Plate Construction Ceramic
Plate Size 7 in;  7 in x 7 in (178 mm x 178 mm;  178 mm)
Temp. Range 70°C - 500°C
Control Analog
Power Consumption 1,005 W;  1,005 W
Dimensions 12.5 in;  12.5 in x 4.4 in;  4.4 in x 8.8 in;  8.8 in (318 mm;  318 mm x 112 mm;  112 mm x 223 mm;  223 mm) (LxHxW)
Working Environment 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
Net Weight 8.6 lb;  8.6 lb (3.9 kg)
Safety Certification TUV
Power 220V-240V~ 7A 50/60Hz
*
*
*
*
*
