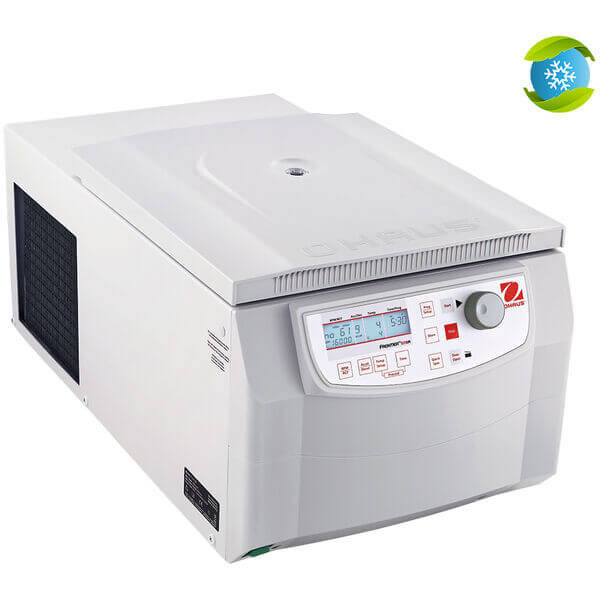

Centrifuge Multi 230V FC5718R REFRIGERATED V1

Name: Centrifuge Multi 230V FC5718R REFRIGERATED V1
SKU: FC5718R-V1
Price: null AUD
Availability: InStock

Brand: Ohaus

Frontier™ 5000 Series Multi Pro

Powerful and Versatile Universal Centrifuges for Virtually Every Lab Application

Centrifuge Multi 230V FC5718R V1

Speed Range 200 rpm – 18,000 rpm

Maximum Relative Centrifugal Force 23,542 x g

Maximum Capacity(Rotor) 4 x 200 ml

Item Number: 83042045

SKU: FC5718R-V1

POA.

Want pricing?

Qty:

i h

Product Files

Data Sheet_FC5718/R_(EN)_AP

Overview
Quick Quote / Enquiry

Applications

Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing

Display

Backlit Liquid Crystal Display (LCD)

Operation

Designed to be used with a variety of rotors and accessories

Communication

N/A

Construction

Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid

Design Features

Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing

Specifications

Speed Range	200 rpm – 18,000 rpm
Maximum Relative Centrifugal Force	23,542 x g
Maximum Capacity(Rotor)	4 x 200 ml
Refrigeration Range	-4 °F – 104 °F (-20 °C – 40 °C)
Program memories	99
Rotor In Package	Not applicable
Acceleration Gear	10
Deceleration Gear	10
Dimensions	28.78 in x 14.13 in x 16.02 in (731 mm x 359 mm x 407 mm) (LxHxW)
Display	LCD with backlight
Lid lock	Motor driven
Net Weight	132 lb (60 kg)
Noise Level	≤60±2 dB(A)
Power	AC Power (Included)
Power Consumption	660 W
Pre-cool time	From room temperature to 4℃ ＜ 10min
Rotor Compatibility	Angle 4 x 85ml RB ID Hi; Angle 12 x 15 ml RB/FA ID; Angle 24 x 1.5 / 2.0 ml ID Sealable; Angle 6 x 50 ml RB ID Hi; Swing out 4 x 100 ml ID; Angle 12 x 1.5 / 2.0 ml ID; Angle 4 x 8-w PCR Strip ID; Angle 44 x 1.5 / 2.0 ml ID; Swing out 4 x 100 ml ID Sealable; Angle 6 x 85 ml RB ID; Angle 24 x 1.5 / 2.0 ml ID; Angle 6 x 85 ml RB ID Hi; Angle 30 x 15 ml RB/FA ID; Angle 30 x 1.5 / 2.0 ml ID Sealable; Angle 10 x 50 ml FA ID; Angle 64 x 0.5 ml ID; Angle 20 x 10 ml RB ID Hi; Angle 6 x 50 ml RB/FA ID; Swing out 2 x 3MTP ID
Rotor Recognition Method	Auto
Running Time	Continous; Quickspin; 10 sec to 99 h 59 min 59 sec
Safety Certification	CE; FCC
Working Environment	41°F - 95 °F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
