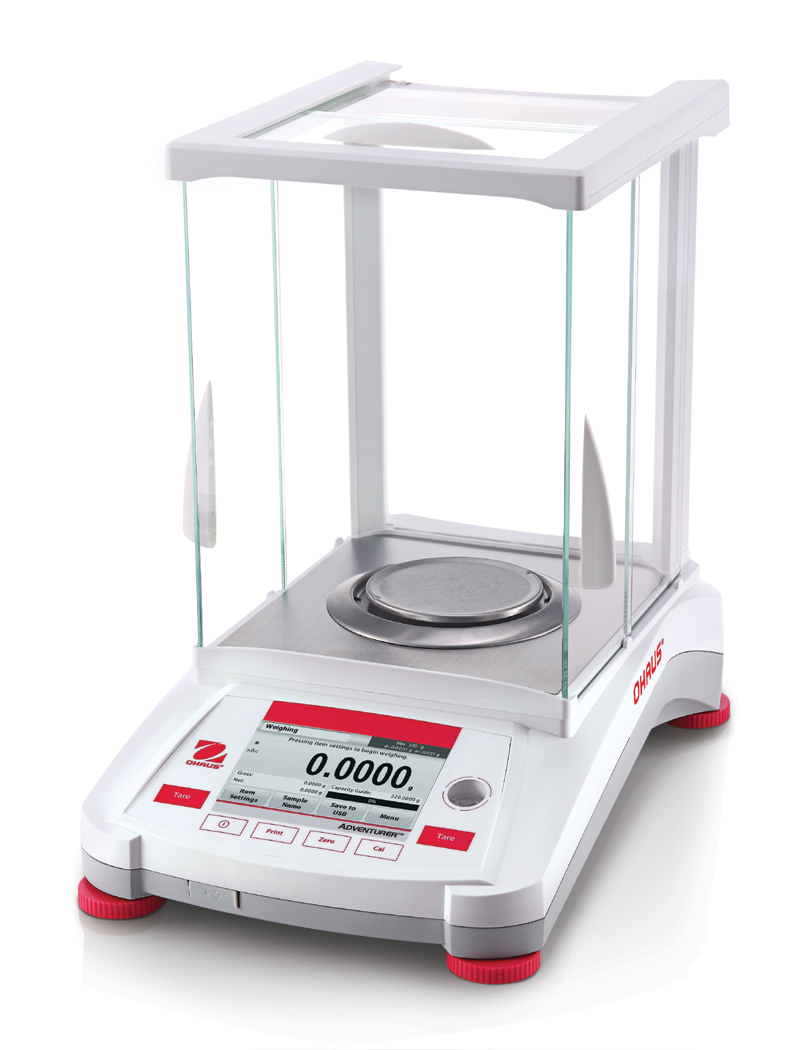

    Adventurer Analytical Balance 220g x 0.0001g, pan size 90mm, internal calibration

    Brand: Ohaus

    ADVENTURER™ ANALYTICAL

    Intuitive Balances Designed for a Variety of Needs

    AX224

    Maximum Capacity 220 g

    Readability 0.1 mg

    Pan Size 3.5 in (90 mm)

    SKU: AX224
    POA

    i h
    OVERVIEW
    Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

    Applications
    Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
    Display
    4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
    Operation
    AC adapter (included)
    Communication
    RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
    Construction
    Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
    Design Features
    Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

    SPECIFICATIONS
    Maximum Capacity220 g
    Readability0.1 mg
    Pan Size3.5 in (90 mm)
    Internal CalibrationAutoCal™ - Automatic
    DraftshieldIncluded
    Auxiliary Display ModelAvailable as an Accessory
    Battery LifeNot applicable
    CommunicationUSB;  RS232 (Included);  USB Host
    Dimensions13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW)
    DisplayFull-Color 4.3 in Touchscreen WQVGA
    Inuse coverIncluded
    Legal for TradeNot applicable
    Linearity ±0.2 mg
    Minimum Weight (USP, 0.1%, typical)0.2 g
    Net Weight11.3 lb (5.1 kg)
    Pan ConstructionStainless Steel
    PowerAC Adapter (Included)
    Repeatability, typical0.1 mg
    Stabilization Time3 s
    Tare RangeTo capacity by subtraction
    Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
    Working Environment50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
    *
    *
    *
    *
    *
